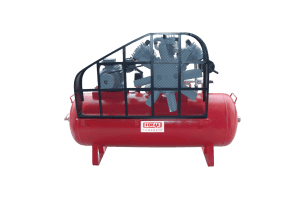

IDEAL BOREWELL MONO &
BELT COMPRESSOR PUMP

IDEAL’S Mono and Belt Compressors are robust and sturdy in design, rugged in construction and highly reliable with they’re proven performance over many decades, and the compressor is coupled with high quality motors to ensure efficient performance and low power consumption.

  • Rugged and sturdy Construction.
  • Compact Design.
  • Available in single and double cylinder.
  • Transparent oil level indicator to check whenever required.
  • Deep finned cast iron cylinder for quick heat dissipation.
  • Small Agriculture fields.
  • Low yield borewells.
  • Drinking Water Supply.
  • Industrial and Civil supply.
  • Apartments.

PARTICULARS

DETAILS

POWER RANGE1.0HP TO 2 HP Mono Compressor

1.0 Hp to 15HP Belt Compressor

VOLTAGE RANGE220V – 240V, 50 HZ, AC Single Phase

380 – 415 V, 50 Hz AC Three Phase

SPEED 720 / 950 RPM Belt, 1440 RPM Mono Compressor
MOTOR TYPETEFC
 Motor Body Cast Iron
 Cylinders Single and double in Belt Compressor
HEAD Maximum 165 Meters Mono/

 420 Meters Belt Compressors

DISCHARGEMaximum 12000 LPH Mono/80,000 LPH Belt Compressors

PARTICULARS

DETAILS

Stator ShellCast iron
CylinderCast Iron
PistonAluminum
Crank AssemblySteel Casting
Bed HousingMS Frame
Air Filter Plastic Assembly
